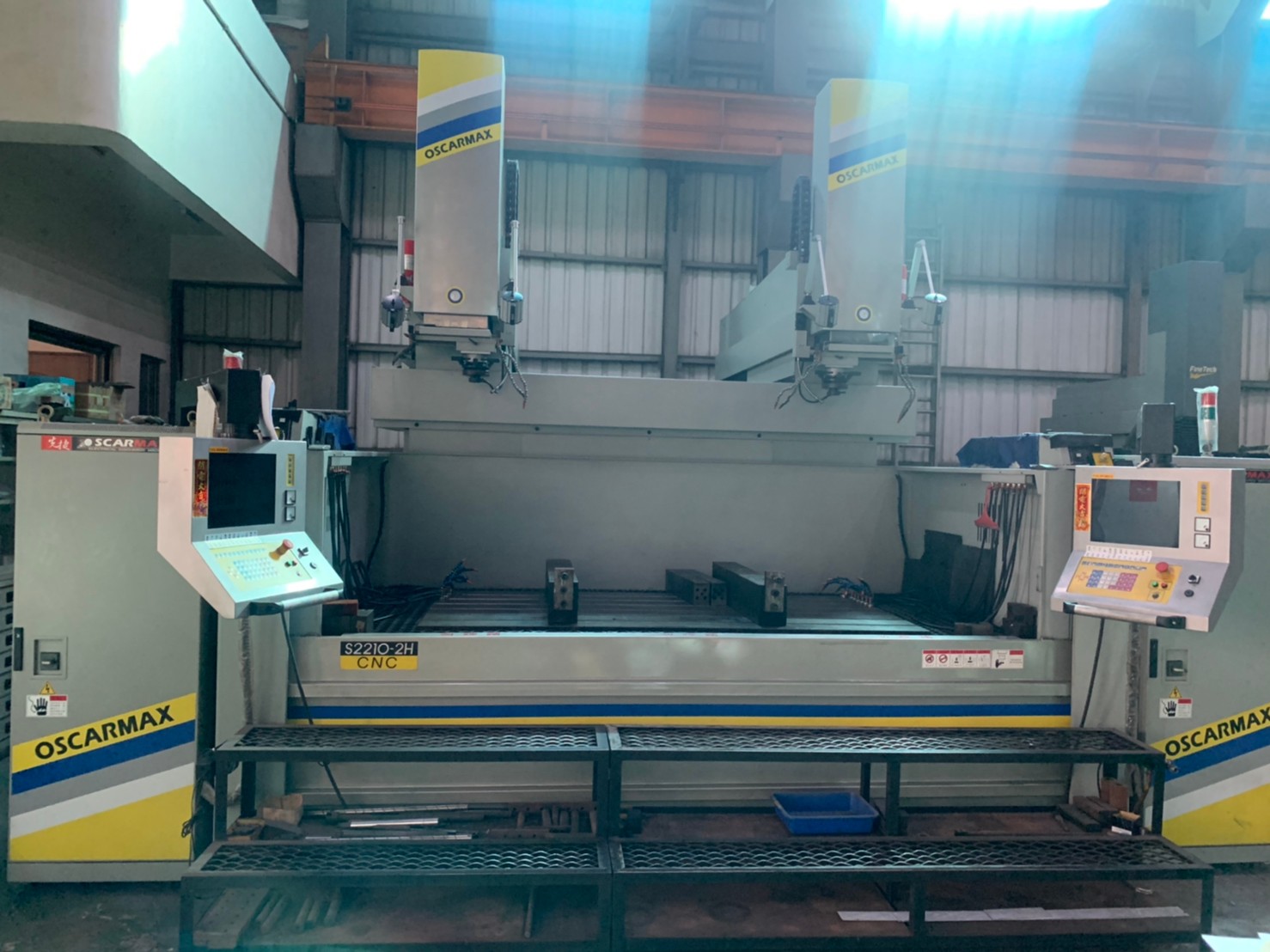

Die Sinker EDM - Twin Head Column



Model S2210-2H CNC 90A
Product specifications Unit Specifications
Work Tank (LxWxH) mm 2890 x 1700 x 800
Work Table (LxW) 2250 x 1100
Table travel (X) 1550 / 775
Table travel (Y) 1000
Servo Travel 600
Distance Between Spindle to Work Table 730 - 1330
Max. Electrode Weight kgs 500
Max. Workpiece Weight 10000
Dimensions mm 5500
4600
3750
Weight kgs 15000
